Item NO. :
KLC-CBVSCabinet material :
Cold rolled steel / stainless steelPurification class :
Class 100HEPA efficiency :
99.99%Power supply :
220/50Table-board material :
Sand light stainless steel
Product information

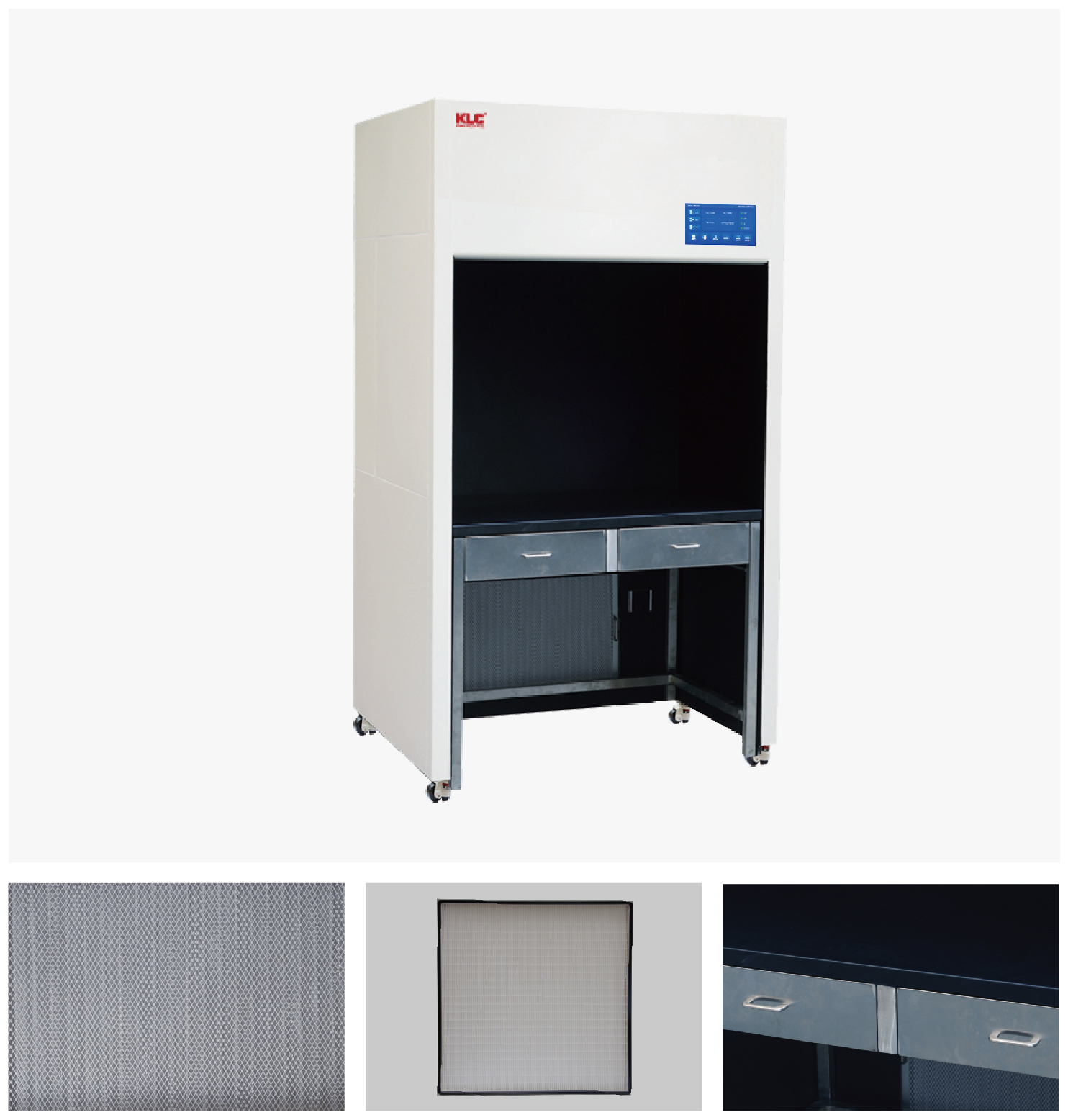

The Separated Vertical Clean Bench is a high-performance clean air workstation designed for various industries and research environments. With its advanced filtration system, it provides a sterile and particle-free working area for activities requiring cleanliness and precision. The bench features a separate design, allowing for efficient airflow distribution and minimized cross-contamination. It incorporates HEPA filters to remove airborne particles and a built-in fan system for continuous air circulation. The bench is equipped with adjustable lighting and user-friendly controls for ease of operation. Its compact and modular design makes it versatile and adaptable to different laboratory settings.
Architectural feature
1. No vibration: The design of vertical clean bench work-table separated from the dynamic part, which is prevented from the problem caused by the vibration.
2. High cleanliness: The clean bench work-table perfectly combined with cabinet, which avoid unqualified clean class caused by air leakage. In addition, this kind of clean bench could achieve to 10 class in work area according to customers’requirement.
3. High quality plate -anti-rust and anti-corrosion: Box material is made of stainless steel or cold rolled steel plate spray manufacturing, the table is sanded stainless steel, has good anti-rust and anti-corrosion ability.
4. Wide application: Precision electronics, photoelectric industry and other industries that have high cleanliness and vibration requirement.
Custom Design

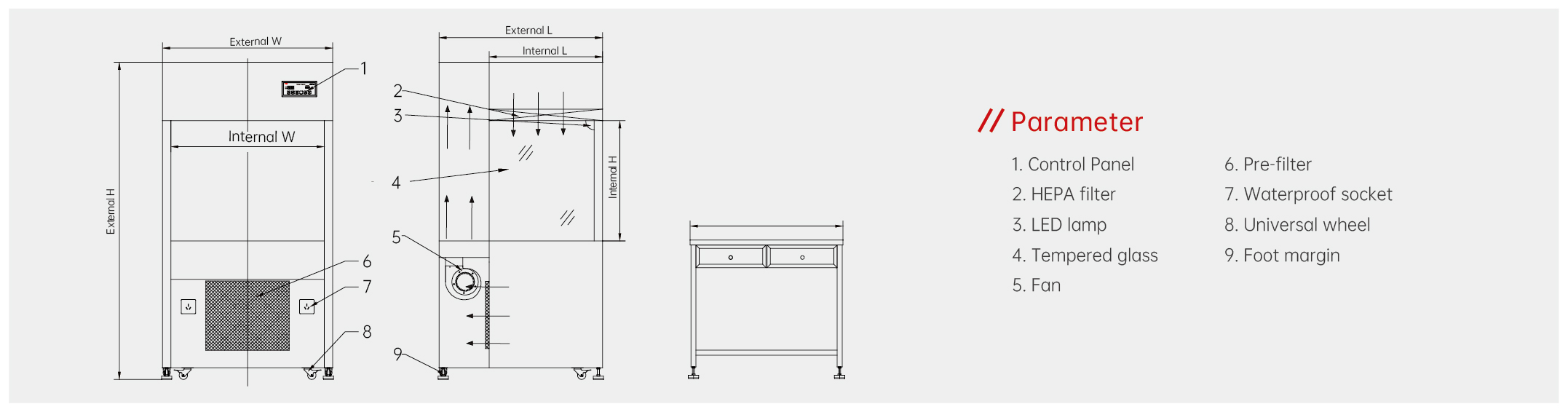

Product Specification
| Item |
Separated Vertical Clean Bench One Person |
Small Separated Vertical Clean Bench for Two Person |
Big Separated Vertical Clean Bench for One Person |
|---|---|---|---|
| Model | CBVS-1 | CBVS-2 | CBVS-3 |
| External Size (WxLxHmm) | 1000×980×1900 | 1200×980×1900 | 1500×980×1900 |
| Internal Size (WxLxHmm) | 900×680×600 | 1100×680×600 | 1400×680×600 |
|
Purification rank (ISO14644-1 standard) |
100 | 100 | 100 |
| Airflow (m³/h) | 600-900 | 800-1100 | 1000-1500 |
| Wind Velocity (m/s) | 0.3 ~ 0.5 | 0.3 ~ 0.5 | 0.3 ~ 0.5 |
| Filtration efficiency (%@0.3μm) | 99.99 | 99.99 | 99.99 |
| Illumination (≥1ux) | >300 | >300 | >300 |
| Power (W) | 135 | 135 | 220 |
| Noise dB (equipment edge) | ≤65 | ≤65 | ≤65 |
| Power supply (V/Hz) | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
| LED standard (W×PC) | 20×1 | 20×1 | 40×1 |
| Material |
The cabinet is cold rolled steel or stainless steel the table-board is sand light stainless steel |
||
High efficiency, good sealing, low resistance, long life-span, and light weight, convenient installation and replacement .
